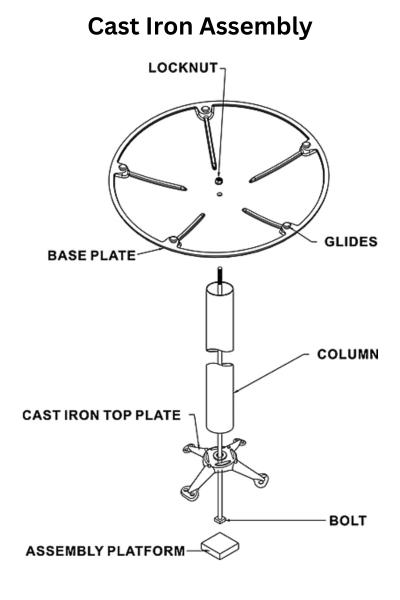

Cast Iron Assembly
Our cast iron table bases can be assembled in under 1 minute! Ease of assembly is just one amazing feature of a JI Base. Start with the base upside down so you can secure both plates to the column. Assembly instructions are printed right on the box!
- Insert the bolt through the top plate.
- Set the top plate onto the assembly platform.
- Secure the column over the bolt in the top plate grooves.
- Mount the base plate on top around the bolt.
- Secure the locknut onto the bolt and tighten it firmly.

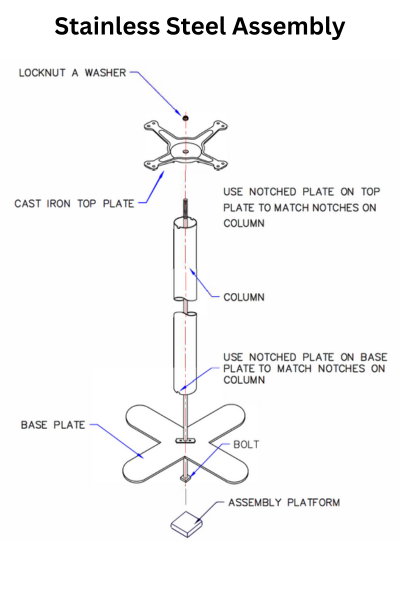

Stainless Steel Assembly
Unlike the cast iron bases, our stainless steel bases are assembled upright. Lining up the column notches with the steel plate on the base and top plates is required for proper assembly. The notches line up with the steel plate so that the column doesn’t shift.
- Insert the bolt through the base plate.
- Set the base plate on the assembly platform.
- Place the column over the bolt and align it with the base plate notches.
- Mount the top plate on top and align it with column notches.
- Secure the locknut onto the bolt and tighten it firmly.
