End & ADA Table Bases

Matching either the 4-prong or “B” (3-prong) series

These End/ADA table bases are a great option for rectangular table tops.  These will match with the rest of your decor, whether you choose the most popular 4-prong series, or the JI Bases’ “B” (3-prong) series.

Recommended Base by Table Top SizeEnd & ADA Table Bases

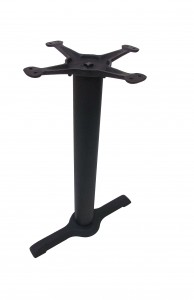

Cast Iron End Base (matches 4-prong series)

Model Number: JI3-522TP12

Overall Height: 28.25″
Weight: 15 lbs.
Base Plate: 5.25″x20″ cast iron
Top Plate: 13″ * cast iron
Metal Column: 3″ diameter, 16 gauge steel
Glides: Adjustable plastic
Standard Finish: Black textured

*upgrade to a 17″ top plate for larger tops (see size chart)

Note: Requires two or more per top.


Cast Iron ADA End Base (matches 4-prong series)

The 2-prong design provides excellent support while allowing table bases to be placed within 6″ from ends of top, permitting wheelchair access.

Model Number: JI3-522TP3.5X12ADA

Overall Height: 28.25″
Weight: 11.5 lbs.
Base Plate: 5.25″ x 20″ cast iron
ADA Top Plate/Column: 3.5″x12″ steel welded to 3″ diameter (16-gauge) column
Glides: Adjustable plastic
Standard Finish: Black textured

Note: Requires two or more per top.

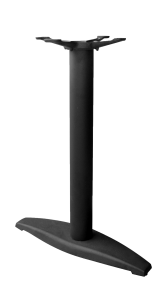

Cast Iron End Base (matches 3-prong "B" series)

Model Number: JIB3-622TP12

Overall Height: 28.25″
Weight: 19 lbs.
Base Plate: 6″x22″ cast iron
Top Plate: 13″ * cast iron
Metal Column: 3″ diameter, 16 gauge steel.
Glides: Adjustable plastic
Finish: Black textured

*upgrade to a 17″ top plate for larger tops (see size chart)

Note: Requires two or more per top.


Cast Iron ADA End Base (matches 3-prong "B" series)

The two-prong design provides excellent support while allowing table bases to be placed within 7″ from ends of top, permitting wheelchair access.

Model Number: JIB3-622TP3.5x12ADA

Overall Height: 28.25″
Weight: 17.5 lbs.
Base Plate: 6″x 22″ cast iron
Top Plate/Column: 3.5″x22″ welded steel on a 3″ diameter, 16-gauge steel column
Glides: Adjustable plastic
Standard Finish: Black textured

Note: Requires two or more per top.


End Base (matches 4-prong Stainless Steel)

Model Number: JIS3-522TP12

Overall Height: 29″
Weight: 16 lbs.
Base Plate: 5"x22" SOLID #304 Stainless Steel
Top Plate: 13″* cast iron
Metal Column: 3″ diameter x 26.75″ long, 16 gauge #304 stainless steel
Glides: 2 each adjustable plastic
Finish: Brushed stainless steel

* Upgrade to 17" top plate for larger tops (see size chart)
    (example - model #JIS3-522TP17)

Note: Requires two or more per top.
