Cantilever (Wall-Mount) Table Bases

Pin Leg Bases for tops longer than 54″ recommended for additional support.

Cantilever table bases are used to create wall mounted tables. JI Bases manufactures two cantilever bases to accommodate a wide variety of sizes and offers an optional Pin Leg for longer table tops (over 54″) that require additional support.

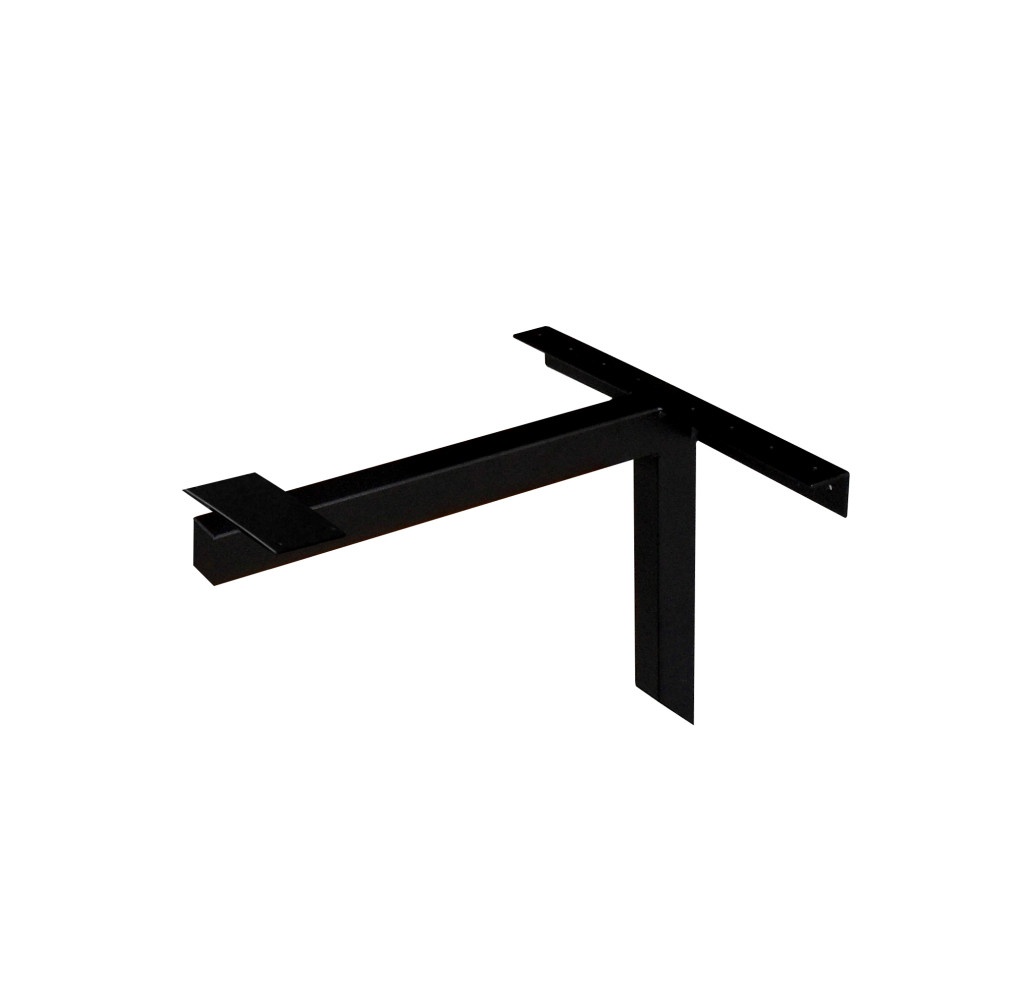

Small Cantilever Table Base

Model #  JICAT-15.5×21SM

Weight: 10 Lbs
Dimensions: 15.5″H x 21″L x 19.75″ wall angle
Frame: 2″ square tubing with 1/8″ x 2″ x 19.75″ steel angle for wall and top attachment
Standard Finish: Black textured

Note: Recommended use with top up to 30″ long.

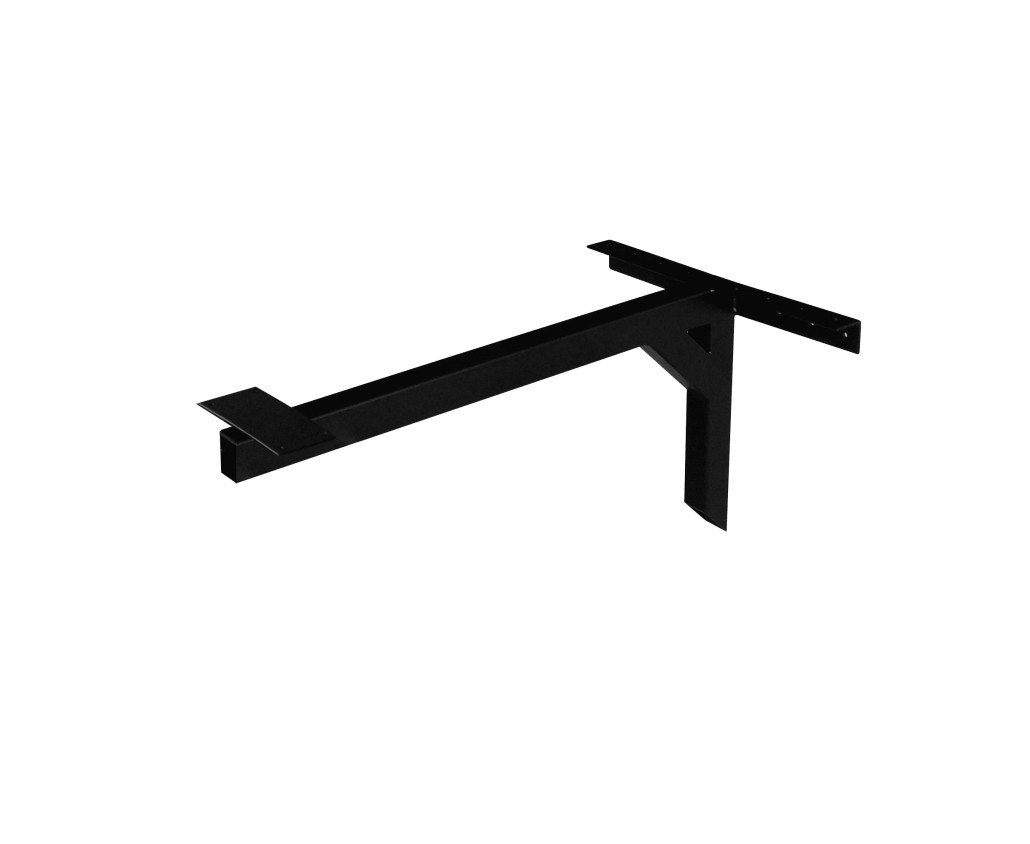

Large Cantilever Table Base

Large Cantilever Table Base

Model #  JICAT-15.5x33LG

Weight: 12.5 Lbs
Dimensions: 15.5″H x 33″L x 19.75″ wall angle
Frame: 2″ square tubing with 1/8″ x 2″ x 19.75″ steel angle for wall and top attachment
Standard Finish: Black textured

Note: Recommended use with top up to 54″ long. Tops longer than 54″ require a pin leg for additional support.

Pin Leg

Pin Leg

Model #   JIPINLEG

Overall Height: 28.25″
Weight: 2 Lbs
Top Plate: 4″ x 4″ 16 gauge steel welded on a 1.25″ O.D. 16 gauge steel column
Glides: Adjustable plastic
Standard Finish: Black textured

Note: Recommended to use with cantilever base for tables over 54″ long.
