18″x18" Footprint
Model Number: JIS3-18TP12
Overall Height: 29″
Weight: 16 lbs.
Base Plate: 18″x18" SOLID #304 Stainless Steel
Top Plate: 13″ * cast iron
Metal Column: 3″ diameter x 26.75″ long, 16 gauge #304 stainless steel
Glides: 4 each adjustable plastic
Finish: Brushed stainless steel
*upgrade to 17″ top plate for larger tops (see size chart)
(example – Model # JIS3-18TP17)

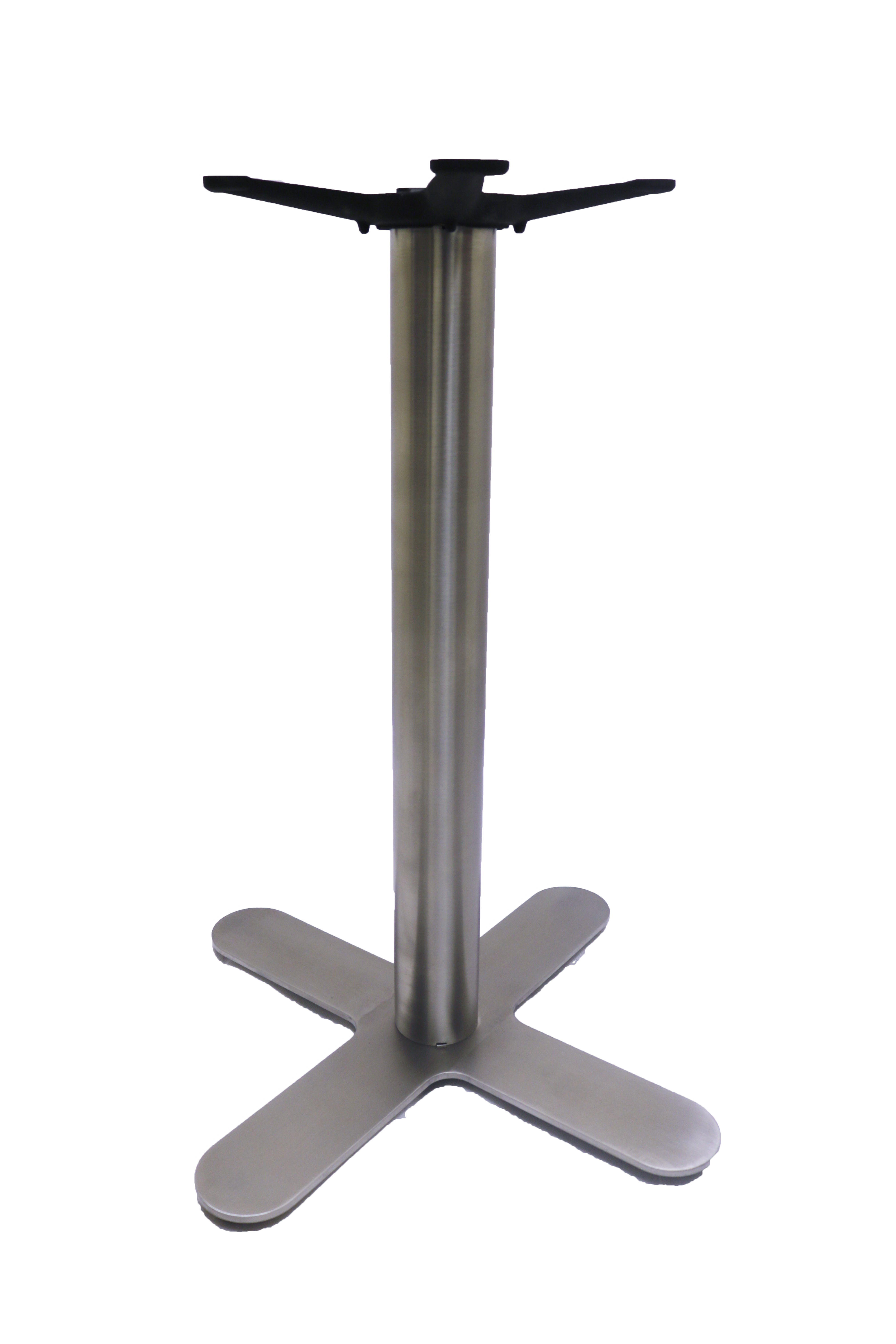

22"x 22" Footprint
Model Number: JIS3-22TP12
Overall Height: 29″
Weight: 18 lbs.
Base Plate: 22″x22" SOLID #304 Stainless Steel
Top Plate: 13″ * cast iron
Metal Column: 3″ diameter x 26.75″ long,16 gauge #304 stainless steel
Glides: 4 each adjustable plastic
Finish: Brushed stainless steel
*upgrade to 17″ top plate for larger tops (see size chart)
(example – Model # JIS3-22TP17)
28"x28" Footprint
Model Number: JIS4-28TP17
Overall Height: 29″
Weight: 32 lbs.
Base Plate: 28″x28" #304 Stainless Steel
Top Plate: 17″ * cast iron
Metal Column: 4″ diameter x 26.75″ long,16 gauge #304 stainless steel
Glides: 4 each adjustable plastic
Finish: Brushed stainless steel
*upgrade to 24″ top plate for larger tops (see size chart)
(example – Model # JIS4-28TP24)

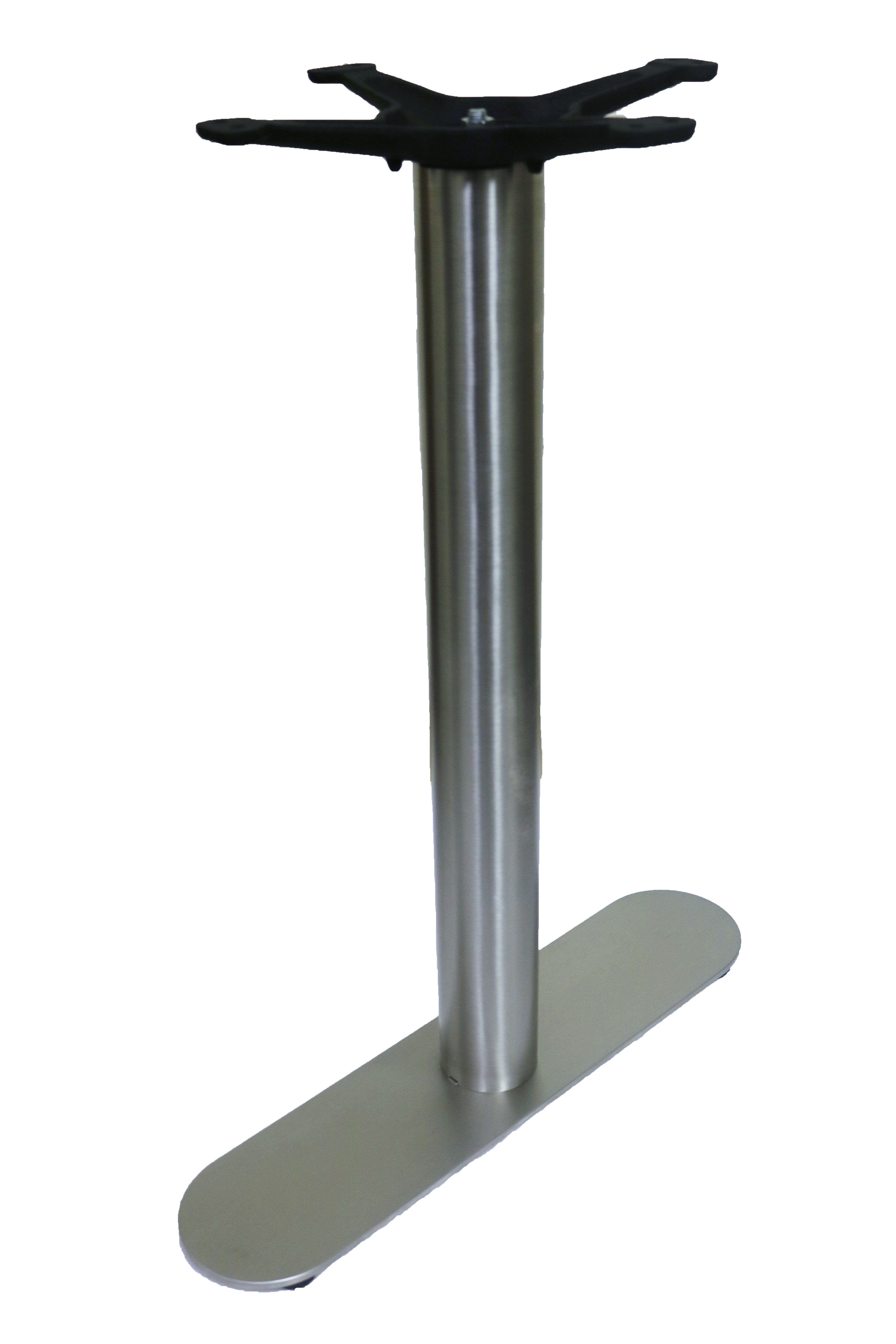

5"x22" End Base
Model Number: JIS3-522TP12
Overall Height: 29″
Weight: 16 lbs.
Base Plate: 5"x22" SOLID #304 Stainless Steel
Top Plate: 13″* cast iron
Metal Column: 3″ diameter x 26.75″ long, 16 gauge #304 stainless steel
Glides: 2 each adjustable plastic
Finish: Brushed stainless steel
* Upgrade to 17" top plate for larger tops (see size chart)
(example - model #JIS3-522TP17)
Note: Requires two or more per top.

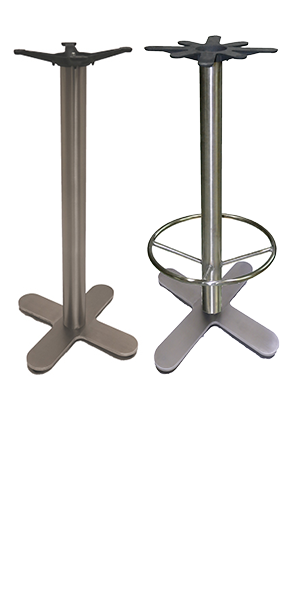

Bar Height Bases with or without footrings
Model # add suffix BH to the standard model number (example – JIS3-22TP12BH)
Model # (with footring) add suffix FR to the bar height model number (example - JIS3-22TP12BHFR)
Overall Height: 40.5″
Base Plate: all sizes base plates available, stainless steel #304
Top Plate: 13″ * cast iron
Metal Column: 3″ ** diameter x 38.5″ long, 16 gauge #304 stainless steel
Glides: 4 each adjustable plastic
Finish: Brushed stainless steel
*upgrade to 17″ top plate for larger tops (see size chart)
(example – Model # JIS3-22TP17BH)
Footring diameter – 3″ column footring – 19″
