Cast Iron Round Series

The Round Table Base line features stylish, domed bases utilizing 5 points of contact. The base itself is made with a domed bottom, using more cast iron material in a smaller footprint. The domed shape gives the base the additional weight needed to support various sized table tops. The additional weight incorporated into the domed shape is not usually found in similar bases.

Recommended Base by Table Top SizeRound Table Bases

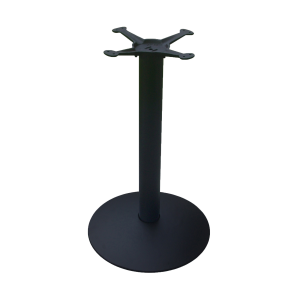

18″ Round Base

Model Number: JI3-18RDTP12

Overall Height: 29″
Assembled Weight: 26 lbs.
Base Plate: 18″ round cast iron
Top Plate: 13″ * cast iron
Metal Column: 3″ diameter ** x 25″ long, 16 gauge steel (see size chart)
Glides: 5 each adjustable plastic
Standard Finish: Black wrinkle

* Upgrade to a 17” top plate for larger tops (see size chart)
(example – Model # JI3-18RDTP17)

** Upgrade to a 4” diameter column
(examplet – Model # JI4-18RDTP12)

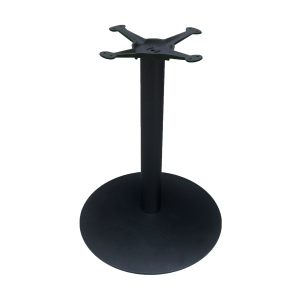

22″ Round Base

Model Number: JI3-22RDTP12

Overall Height: 29″
Assembled Weight: 37 lbs.
Base Plate: 22″ round cast iron
Top Plate: 13″ * cast iron
Metal Column: 3″ ** diameter x 25″ long, 16 gauge steel
Glides: 5 each adjustable plastic
Standard Finish: Black wrinkle

* Upgrade to a 17” top plate for larger tops (see size chart)
(example – Model # JI3-22RDTP17)

** Upgrade to a 4” diameter column
(example – Model # JI4-22RDTP12)


28″ Round Base

Model Number: JI4-28RDTP17

Overall Height: 29″
Assembled Weight: 78 lbs.
Base Plate: 28″ round cast iron
Top Plate: 17″ * cast iron
Metal Column: 4″ diameter x 25″ long, 16 gauge steel
Glides: 5 each adjustable plastic
Standard Finish: Black wrinkle

* Upgrade to a 24” top plate for larger tops (see size chart)
(example – Model # JI4-28RDTP24)

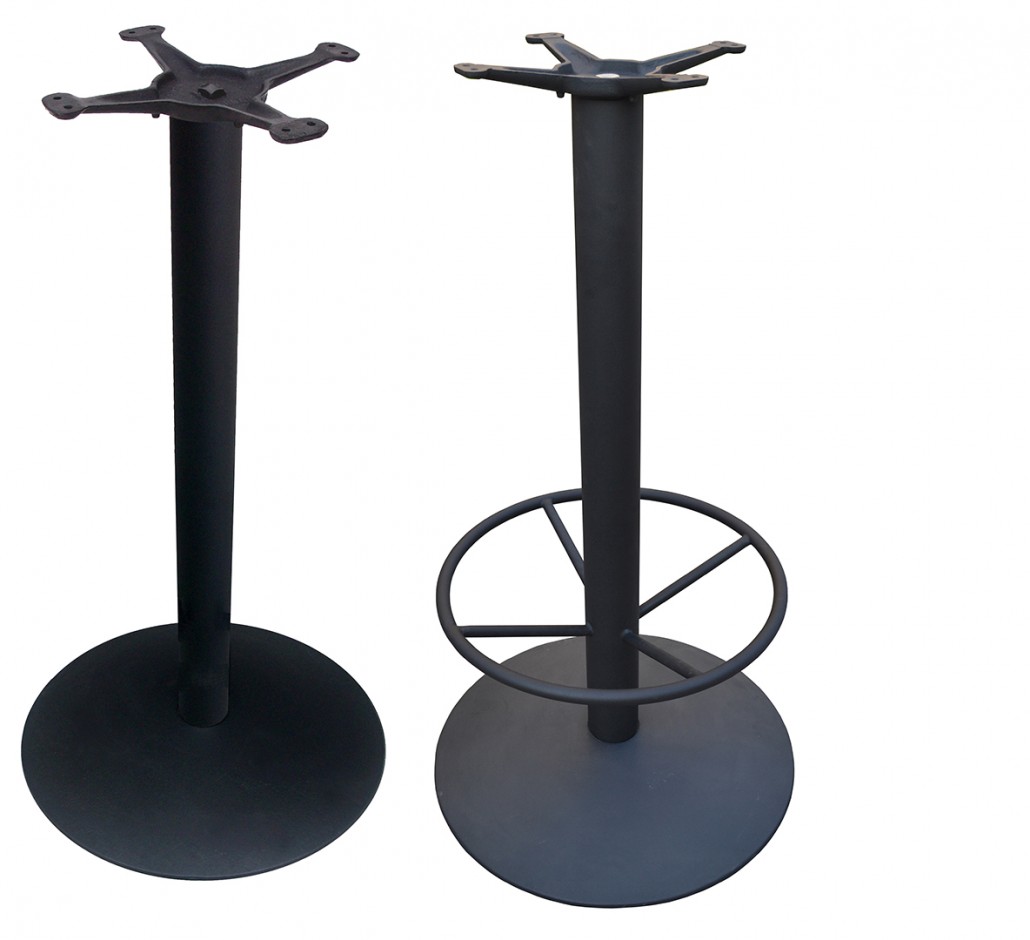

Bar Height with or without Footrings

Model # Add suffix of BH to standard Model Number (example: JI3-18RDTP12BH)
w/Footring Add suffix FR to bar height model # (example: JI3-18RDTP12BHFR)

Overall Height: 41.5″

Base Plate   18”, 22” or 28” cast iron (see size chart)
Top Plate  13″ or 17“ cast iron (see size chart)

Metal Column: 3″ or 4” diameter x 37.25″ long, 16 gauge steel
(see size chart)

Glides: Adjustable plastic
Standard Finish: Black wrinkle

Footring diameter:
3” column footring – 19”
4” column footring – 22”
