Bar Height Table Bases

JI Bases is pleased to offer both dining and bar height table bases. We’ve put all the styles in one place for your convenience, if you’re simply looking for bar height bases! Feel free to browse, we’re here to help when you need us.

All of our bar height bases can be purchased with or without footrings. It’s your choice.

Recommended Base by Table Top SizeAll Bar Height Table Bases

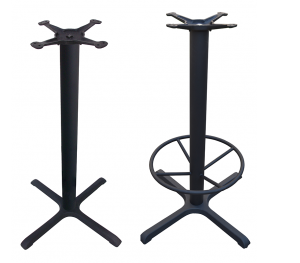

4-Prong Bar Height Bases

Model #: Add suffix of BH to standard Model Number
(example:  JI3-22TP12BH)
with a footring:
    Add suffix of FR to Bar Height Model
(example:  JI3-22TP12BHFR)

Overall Height: 40.5″
Base Plate:  all available sizes (see size chart)
Top Plate: 13″, 17″ or 24″ cast iron (see size chart)
Metal Column: 3″ or 4″ diameter x 37.25″ long, 16 gauge steel (see size chart)
Glides: Adjustable plastic
Standard Finish: Black textured

Footring Diameter:
3″ diameter column – 19″
4″ diameter column – 22″

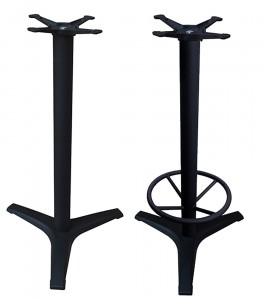

“B” Series (3-Prong) Bar Height Bases

Model # Add suffix of BH to standard Model Number (example: JIB3-22TP12BH)
w/Footring Add suffix FR to bar height model # (example: JIB3-22TP12BHFR)

Overall Height: 40.375″

Base Plate 22” or 27” cast iron (see size chart)
Top Plate: 13″ or 17” cast iron (see size chart)

Metal Column: 3″ diameter x 37.25″ long, 16 gauge steel
4“ diameter x 37.25 long, 16 gauge steel

Glides: Adjustable plastic
Standard Finish: Black textured

Footring Diameter: 3” diameter column – 19”
4” diameter column – 22”

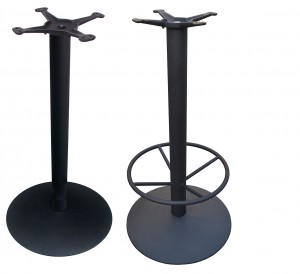

Round Bar Height Bases

Model # Add suffix of BH to standard Model Number (example: JI3-18RDTP12BH)
w/Footring Add suffix FR to bar height model # (example: JI3-18RDTP12BHFR)

Overall Height: 41.5″

Base Plate   18”, 22” or 28” cast iron (see size chart)
Top Plate  13″ or 17“ cast iron (see size chart)

Metal Column: 3″ or 4” diameter x 37.25″ long, 16 gauge steel
(see size chart)

Glides: Adjustable plastic
Standard Finish: Black textured

Footring diameter:
3” column footring – 19”
4” column footring – 22”

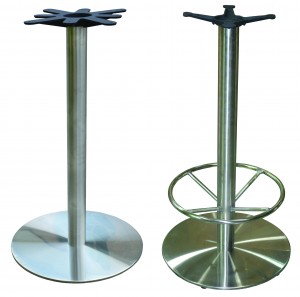

Stainless Steel Round Bar Height Bases

Model # add suffix BH to the standard model number (example – JIS3-18RDTP12BH)

Overall Height: 40.5″
Base Plate: all sizes base plates available, stainless steel #304
Top Plate:  13″, 17″ or 24″  *  cast iron (see size chart)
Metal Column: 3″ ** diameter x 38.5″ long, 16 gauge steel
Glides: 5 each adjustable plastic
Finish: Brushed stainless steel

*upgrade to 17″ or 24″ top plate for larger tops (see size chart)
(example – Model # JIS3-18RDTP17BH)
**upgrade to a 4″ diameter column (see size chart)
(example – Model # JIS4-18RDTP12BH)

Footring diameter –  3″ column footring – 19″
4″ column footring – 22″


Stainless Steel 4-prong Bar Height Bases

Model # add suffix BH to the standard model number (example – JIS3-22TP12BH)

Model # (with footring) add suffix FR to the bar height model number (example - JIS3-22TP12BHFR)

Overall Height: 40.5″
Base Plate: all sizes base plates available, stainless steel #304
Top Plate: 13″ *  cast iron
Metal Column: 3″ ** diameter x 38.5″ long, 16 gauge steel
Glides: 4 each adjustable plastic
Finish: Brushed stainless steel

*upgrade to 17″ top plate for larger tops (see size chart)
(example – Model # JIS3-22TP17BH)

Footring diameter –  3″ column footring – 19″

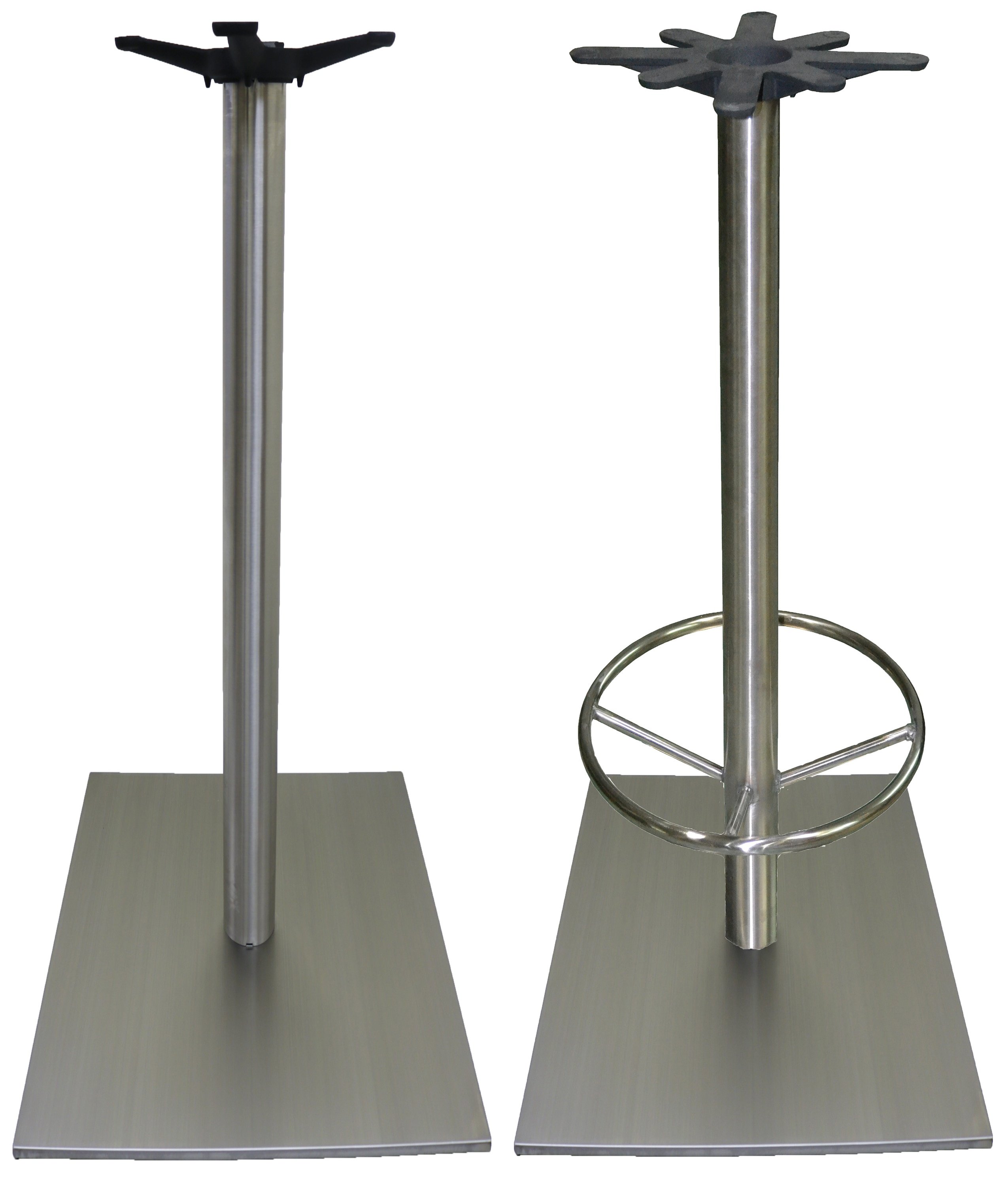

Stainless Steel Square Bar Height with Round Column

Model # add suffix BH to the standard model number (example – JIS3RD-18SQTP12BH or JIS3RD-22SQTP12BH)

Footring Model # add suffix FR to the bar height model number (example - JIS3RD-18SQTP12BHFR

Overall Height: 40.5″
Base Plate: 18" or 22" square, #304 stainless steel
Top Plate: 13″ * cast iron
Metal Column: 3" diameter x 38.5″ long, 16 gauge #304 stainless steel
Glides: 4 each adjustable plastic
Finish: Brushed stainless steel

* the top plate may be upgraded to 17" to accomodate larger tops (see size chart)

Footrings - 3" column - 19"

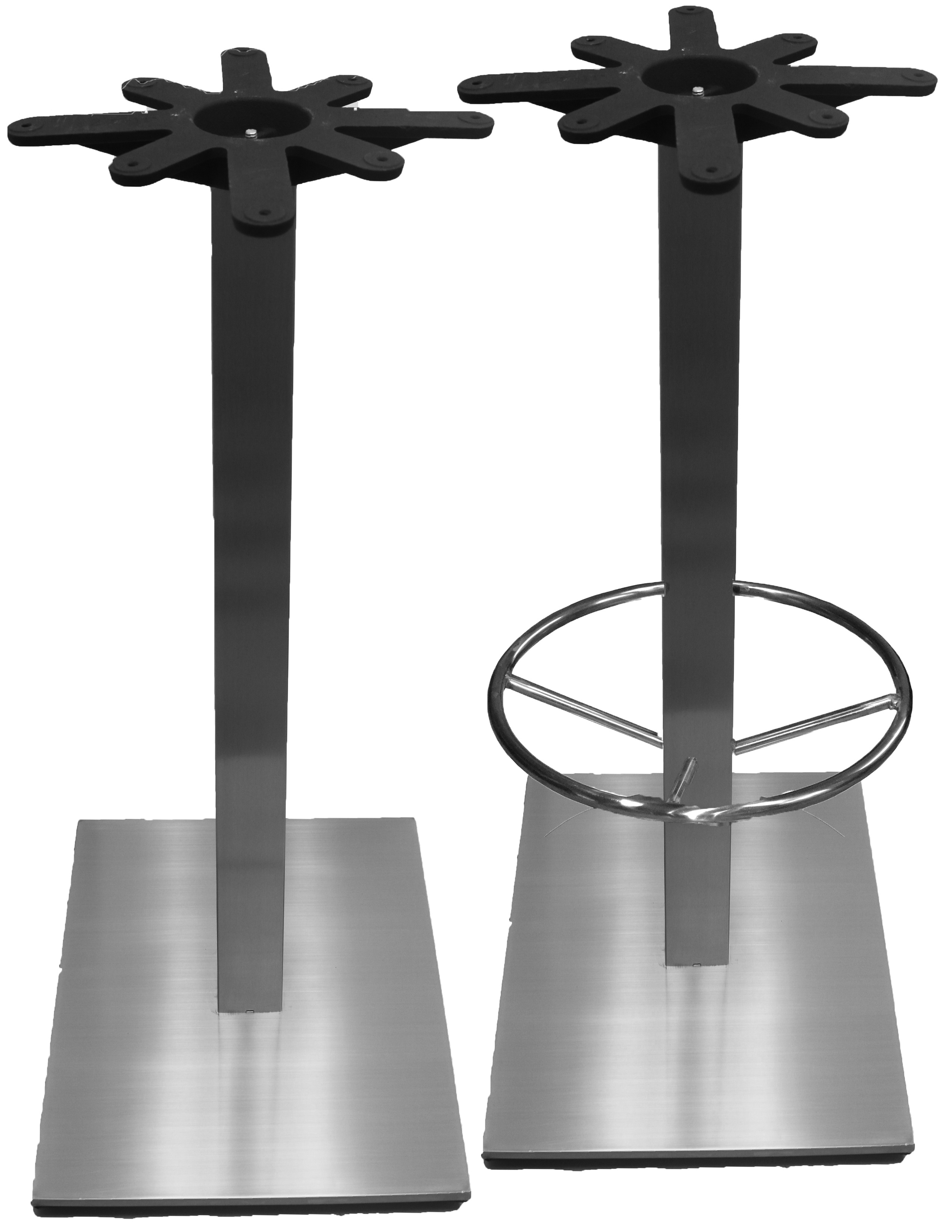

Stainless Steel Square Bar Height with Square Column

Model # add suffix BH to the standard model number (example – JIS3SQ-18SQTP17BH or JIS3SQ-22SQTP17BH)

Footring model # please add FR to the BH model number (example - JIS3SQ-18SQTP17BHFR)

Overall Height: 40.5″
Base Plate: 18" or 22" square, #304 stainless steel
Top Plate: 17″ * cast iron
Metal Column: 3"x3" Square x 38.5″ long, 16 gauge #304 stainless steel
Glides: 4 each adjustable plastic
Finish: Brushed stainless steel

* the square column requires the 17" top plate as standard
