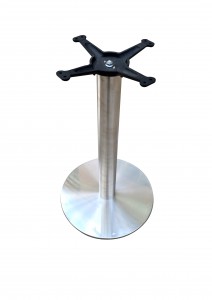

Stainless 18″ Round
Model Number: JIS3-18RDTP12
Overall Height: 29″
Weight: 37 lbs.
Base Plate: 18″ round #304 stainless steel
Top Plate: 13″ * cast iron
Metal Column: 3″ diameter x 26.75″ long, 16 gauge #304 stainless steel
Glides: 5 each adjustable plastic
Finish: Brushed stainless steel
*upgrade to 17″ top plate for larger tops (see size chart)
(example – Model # JIS3-18RDTP17)

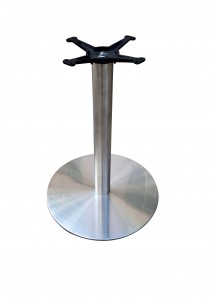

Stainless 22″ Round
Model Number: JIS3-22RDTP12
Overall Height: 29″
Weight: 53 lbs.
Base Plate: 22″ round #304 stainless steel
Top Plate: 13″ * cast iron
Metal Column: 3″ diameter x 26.75″ long,16 gauge #304 stainless steel
Glides: 5 each adjustable plastic
Finish: Brushed stainless steel
*upgrade to 17″ top plate for larger tops (see size chart)
(example – Model # JIS3-22RDTP17)

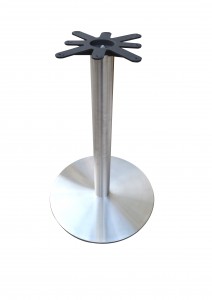

Stainless 28″ Round
Model Number: JIS4-28RDTP17
Overall Height: 29″
Weight: 73 lbs.
Base Plate: 28″ round #304 stainless steel
Top Plate: 17″* cast iron
Metal Column: 4″ diameter x 26.75″ long, 16 gauge #304 stainless steel
Glides: 5 each adjustable plastic
Finish: Brushed stainless steel
* Upgrade to 24" top plate for larger tops (see size chart)
(example - model #JIS4-28RDTP24)

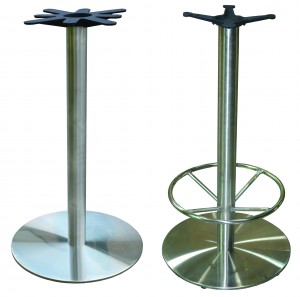

Stainless Bar Height Bases with or without footrings
Model # add suffix BH to the standard model number (example – JIS3-18RDTP12BH)
Overall Height: 40.5″
Base Plate: all sizes base plates available, #304 stainless steel
Top Plate: 13″ * cast iron
Metal Column: 3″ ** diameter x 38.5″ long, 16 gauge #304 stainless steel
Glides: 5 each adjustable plastic
Finish: Brushed stainless steel
*upgrade to 17″ or 24″ top plate for larger tops (see size chart)
(example – Model # JIS3-18RDTP17BH)
**upgrade to a 4″ diameter column (see size chart)
(example – Model # JIS4-18RDTP12BH)
Footring diameter – 3″ column footring – 19″
4″ column footring – 22″
